Labour saving operation
The fully automatic operation of the mobile housing system will save valuable time for you.
Fully mobile and roadworthy
Move your mobile housing system periodically without high effort through roadworthiness.

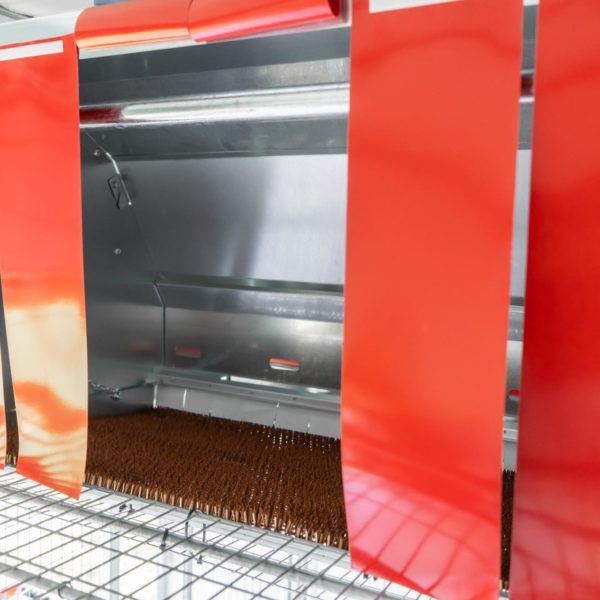

Family tilting floor nests with egg belt
Transport your eggs to the separate collection room by using the electric egg belt.
Zero-emission operation through photovoltaic system with batteries and storage tanks for water and feed.
Separate anteroom for egg collection, storage and to operate the housing computer.
24-V power supply via batteries
The entire housing system runs on 24V via batteries. Unrestricted operation while moving the housing system.
The automatic chain-feeding provides your layers with feed at any time. Easily dosage. Optimal feeding.
Storage tanks for water and feed
Save valuable time at the daily stable work through big storage tanks for water and feed inside the housing system.
Computer-controlled ventilation system
The technically mature ventilation system ensures a pleasant climate inside the mobile housing system.
Muck out by electric manure belt
Muck out the mobile housing system easily by electrically driven manure belts and save valuable manual work.
Fault and alarm messages via SMS
Keep a eye on the operation at any time through the automatic fault and alarm messages via SMS.
Delivered ready for use
The STARTER-plus is delivered completely assembled and ready for immediate use.
Our mobile housing systems are manufactured to the highest quality standards of species-appropriate livestock farming.
More informations about the STARTER-plus

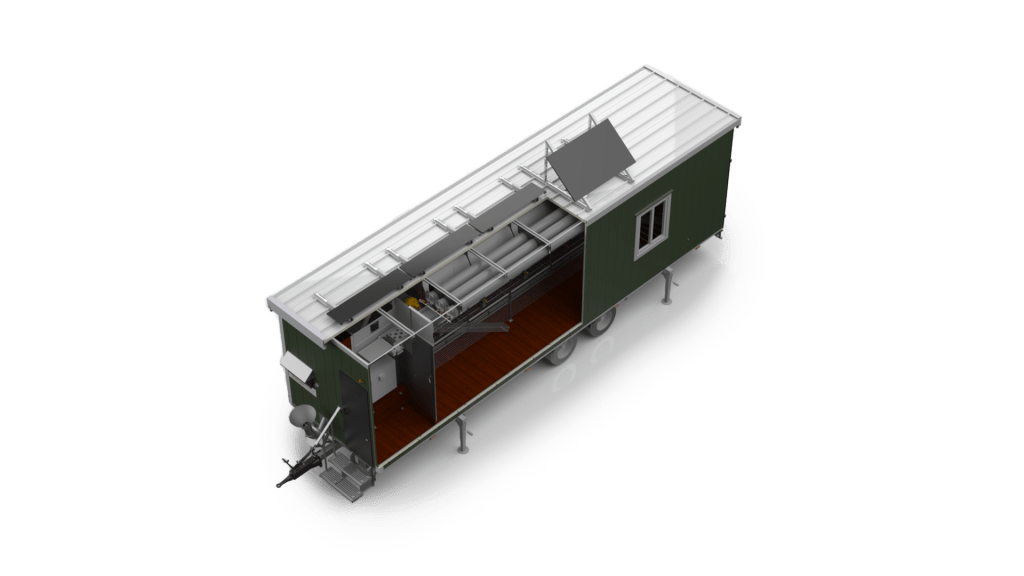

Description of the mobile housing system
The farmermobil® STARTER-plus can accommodate 230 or 345 layers and is suitable for both organic and free-range farming.
As a special feature, the STARTER is equipped with a separate egg room and an access door to enter the housing system.
The mobile STARTER housing system is operated fully automatically by its own state-of-the-art computer. It is constructed and fully equipped to enable self-sufficient operation. Storage tanks in the vehicle supply feed and water to the animals.
The housing system computer regulates the lighting and the automatic opening and closing of the outdoor access flaps and tilting floor nests, as well as the operation of the ventilation and feeding equipment in the housing system, based on time and/or temperature control. In addition, the manure and egg belts can be electrically operated. The entire housing system runs on 24V. The energy required is supplied by batteries in the vehicle which are charged via a 230V connection. Optionally, a photovoltaic system can be installed on the roof to charge the batteries.*
The STARTER-plus is delivered completely assembled and ready for immediate use. The mobile poultry housing system has a permanently installed chassis, making it roadworthy and fully mobile. This facilitates easy moving, allowing optimum use of the available pasture and avoiding any excessive input of nutrients into the soil.
*Alternative energy sources to charge the batteries may be required caused by the weather.
- Fully automatic operation (feed, water, air intake, air exhaust, family nests, etc.)
- Optional electric manure and egg belts
- Modern computer control
- Designed for self-sufficient operation
- Roadworthiness through permanently installed chassis
- Two levels with the automatic feed and water line as well as perches and tilting floor nests
- Automatic outdoor access flaps in the housing system floor
- Family tilting floor nests with automatic nest bottoms
- Internal 1 m³ feed silo
- 500-litre water tank
- 24-V power supply via batteries
- 230V charging current (no high voltage current required)
- Polyamide-coated floor grate
- Four landing legs
- Air intake and air exhaust
|Number of animals:||230 in case of organic farming, 345 in case of free-range farming||Water:||450-litre tank|
|Overall length:||11.30m||Feed supply:||1 m3 feed silo|
|Body length:||8.60 m||Air exhaust:||manually adjustable fresh air element, adjustable windows|
|Overall width:||2.55 m||Air intake:||automatically temperature-controlled fan|
|Overall height:||3.56 m||Chassis:||Tandem axle, braked|
Errors excepted, technical changes reserved – 10.02.2020
