1500 layers in free-range farming
Your benefits
Labour saving operation
The fully automatic operation of the mobile housing system will save valuable time for you.
Fully mobile and roadworthy
Move your mobile housing system periodically without high effort through roadworthiness.
Family tilting floor nests with egg belt
Transport your eggs to the separate collection room by using the electric egg belt.
Self-sufficient operation
Zero-emission operation through photovoltaic system with batteries and storage tanks for water and feed.
Separate anteroom
Separate anteroom for egg collection, storage and to operate the housing computer.
24-V power supply via batteries
The entire housing system runs on 24V via batteries. Unrestricted operation while moving the housing system.
Automatic chain-feeding
The automatic chain-feeding provides your layers with feed at any time. Easily dosage. Optimal feeding.
Storage tanks for water and feed
Save valuable time at the daily stable work through big storage tanks for water and feed inside the housing system.
Computer-controlled ventilation system
The technically mature ventilation system ensures a pleasant climate inside the mobile housing system.
Muck out by electric manure belt
Muck out the mobile housing system easily by electrically driven manure belts and save valuable manual work.
Fault and alarm messages via SMS
Keep a eye on the operation at any time through the automatic fault and alarm messages via SMS.
Delivered ready for use
The fm1000 is delivered completely assembled. After a short commissioning the housing system is ready for use.
The new 9″-touch housing computer
You can configure the fully automatic operation by using a menu navigation with clear symbols on a 9-inch touch display.
The digital fill level indicator gives you information on the feed and water consumption of the animals. The consumption values will automatically be pictured in a 30 day statistic.
Clear 9-inch touchdisplay
Intuitive operation by easily menu
Digital fill level indicator for water and feed
30-day statistic for water and feed consumption
Feed scale & watermanagement
Automatic fault and alarm message via SMS
Comfortable moving
With the fully mobile fm600 you will save valuable time when moving the mobile housing system.
Dock the tractor, start up landing legs and start driving – move the mobile housing system periodically without high effort to optimal use the available pasture and avoiding any excessive input of nutrients into the soil
After moving the mobile housing system it can be adjusted comfortable by the hydraulic landing legs. Through the batteries the housing system operates unrestricted while moving.
Certified quality
Our mobile housing systems are manufactured to the highest quality standards of species-appropriate livestock farming.
More informations about the fm1000
Description of the mobile housing system
The farmermobil® fm1000 can accommodate 1000 or 1500 layers and is suitable for both organic and free-range farming.

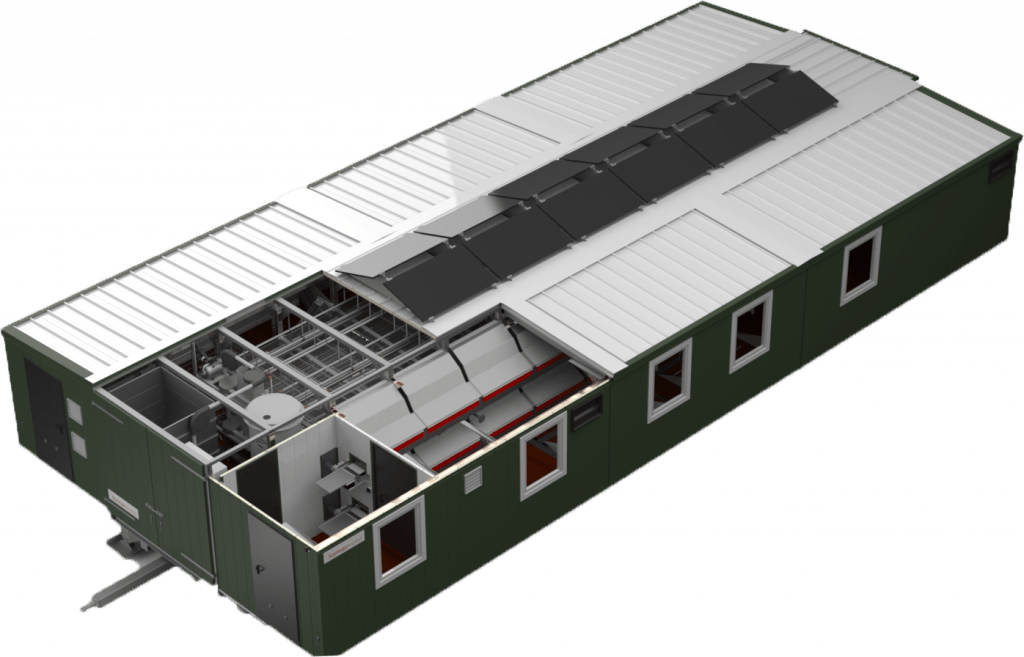

The mobile housing system consists of a middle section, with three side panels mounted on each side. The middle section is permanently installed on a chassis. Scratching areas with solid floors, that seem to hover along with the middle section, are attached to both sides.
The fm1000 mobile housing system is operated fully automatically by its own state-of-the-art computer. It is constructed and fully equipped to enable self-sufficient operation. Storage tanks in the vehicle supply feed and water to the animals. The housing system computer regulates the lighting and the automatic opening and closing of the outdoor access flaps and tilting floor nests, as well as the operation of the ventilation and feeding equipment in the housing system, based on time and/or temperature control. In addition, the manure and egg belts can be electrically operated. If there is a malfunction, the computer automatically sends a text message to the farmer‘s, or a farm hand‘s, phone. Alternatively, the mobile unit can also be monitored and controlled via WLAN.
The entire housing system runs on 24 V. The energy required is supplied by batteries in the vehicle which are charged via a 230V connection. Optionally, a photovoltaic system can be installed on the roof to charge the batteries.*
The fm1000 is delivered completely equipped and takes very little time to be ready for use. The permanently installed chassis makes the mobile poultry housing system fully mobile and flexible. This facilitates easy moving, allowing optimum use of the available pasture and avoiding any excessive input of nutrients into the soil.
*Alternative energy sources to charge the batteries may be required caused by the weather.
Facilities
- Fully automatic operation (feed, water, air intake, air exhaust, manure belt, family nests, egg collection belt, etc.)
- Modern computer control
- Designed for self-sufficient operation
- Fully mobile thanks to the permanently installed chassis
- Separate egg collection room
- Electric manure and egg collection belt
- Two levels in the middle section with the automatic feed lines, water lines and perches
- Family tilting floor nests with automatic nest floors
- Several automatic outdoor access flaps in the housing system floor
- Polyamide-coated floor grate
- Galvanized construction
- 1000-litre water tank
- Internal 2 m³ feed silo
- 24 V power supply by batteries
- 230 V charging current (no high voltage current required)
- Four individually adjustable landing legs
- Time and temperature-controlled supply and exhaust air
- Fault messages sent to a mobile phone
Technical specifications
Technical specifications
| Number of animals: | 1000 in case of organic farming, 1500 in case of free-range farming | Water: | 1000-litre tank |
| Full dimensions: | 18.30 x 7.80 x 3.35m | Feed storage: | 2 m3 feed silo |
| Overall length: | 18.30m | Air exhaust: | Two temperature-controlled fans in two vertical, flap-controlled exhaust air ducts/natural summer ventilation via doors and windows |
| Body length: | 16.90m | Air intake: | Two temperature-controlled, fresh air elements in the tailgate/natural summer ventilation via doors and windows |
| Overall width: | 7.80m | Chassis: | Three running axles |
| Overall height: | 3.35m |
Errors excepted, technical changes reserved – 10.02.2020
